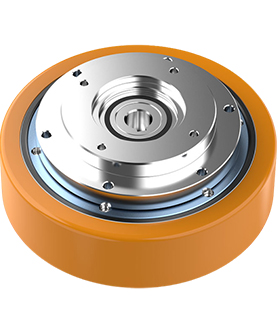

規格 Specification | 單位 Unit | 節數 Stage | 減速比 Ratio | WGV100 | WGV115 | WGV135 | WGV160 |
轉動慣量J1 Rotational inertia J1 | Kg.cm2 | 1 | 2 | 0.16 | 0.61 | 0.61 | 12.3 |
3 | 0.14 | 0.48 | 0.48 | 7.5 | |||
4 | 0.13 | 0.47 | 0.47 | 74 | |||
5 | 0.13 | 0.45 | 0.45 | 72 | |||
6 | 0.13 | 0.45 | 0.45 | 7.2 | |||
7 | 0.13 | 0.4 | 0.4 | 6.8 | |||
9 | 0.13 | 0.4 | 0.4 | 6.8 | |||
2 | 14 | 0.1 | 0.2 | 0.2 | 2 | ||
16 | 0.08 | 0.18 | 0.18 | 1.7 | |||
18* | 0.09 | 0.19 | 0.19 | 1.8 | |||
20 | 0.08 | 0.18 | 0.18 | 1.7 | |||
21 | 0.09 | 0.19 | 0.19 | 1.8 | |||
24 | 0.08 | 0.18 | 0.18 | 1.7 | |||
28 | 0.09 | 0.19 | 0.19 | 1.8 | |||
30 | 0.08 | 0.18 | 0.18 | 1.7 | |||
32 | 0.08 | 0.18 | 0.18 | 1.7 | |||
40 | 0.08 | 0.18 | 0.18 | 1.7 | |||
額定輸出力矩 Rated output torqueT2N | N.m | 1 | 2 | 75 | 90 | 135 | 250 |
3 | 90 | 115 | 200 | 400 | |||
4 | 95 | 115 | 200 | 520 | |||
5 | 90 | 110 | 200 | 480 | |||
6 | 90 | 110 | 200 | 430 | |||
7 | 75 | 85 | 150 | 400 | |||
9 | 75 | 85 | 150 | 340 | |||
2 | 14 | 75 | 100 | 150 | 250 | ||
16 | 75 | 100 | 150 | 220 | |||
18 | 90 | 115 | 240 | 450 | |||
20 | 70 | 70 | 150 | 180 | |||
21 | 90 | 115 | 240 | 420 | |||
24 | 90 | 115 | 240 | 330 | |||
28 | 95 | 125 | 260 | 520 | |||
30 | 90 | 105 | 240 | 270 | |||
32 | 95 | 125 | 260 | 440 | |||
40 | 95 | 125 | 260 | 360 | |||
額定輸入轉速/Rated input speed n1N | rpm | 1 | 2~9 | 3000 | 3000 | 3000 | 3000 |
2 | 14~40 | 4000 | 4000 | 4000 | 4000 | ||
最大輸入轉速/Maximum iutput speed n1B | rpm | 1 | 2~9 | 5000 | 5000 | 5000 | 5000 |
2 | 14~40 | 6000 | 6000 | 6000 | 6000 | ||
標準背隙/Standard backlash P2 | arcmin | 1 | 2~9 | ≤5 | ≤5 | ≤5 | ≤5 |
2 | 14~40 | ≤8 | ≤8 | ≤8 | ≤8 | ||
重量/Weight | kg | 1 | 2~9 | 4.5 | 7.5 | 11.0 | 15 |
2 | 14~40 | 5.5 | 9 | 13.5 | 18 | ||
效率/Efficiency | % | 1 | 2~9 | ≥95 | |||
2 | 14~40 | ≥93 | |||||
容許徑向力/Allowable radial force F2aB | N | 1-2 | 2~40 | 4000 | 8000 | 10000 | 13000 |
急停扭矩/Emergency stop torque T2NOT | Nm | 1-2 | 2~40 | 二倍額定輸出力矩(允許1000次)/Twice rated output torque | |||
使用壽命/Lifespan | h | 1-2 | 2~40 | 20000 | |||
使用溫度/Working temperature | ℃ | 1-2 | 2~40 | -20℃~90℃ | |||
防護等級/IP Grade | / | 1-2 | 2~40 | IP64 | |||
潤滑/Lubricating | / | / | 全合成潤滑脂|Synthetic Lubricating Grease | ||||
噪音值(n1=3000rpm,無負載) Noise level (n1=3000rpm,off load) | dB(A) | / | / | ≤58 | ≤60 | ≤63 | ≤65 |
安裝方向/Installation direction | / | / | 任意方向/In any direction |
